Joystick Shield
- Joystick Shield expansion board for Arduino Uno and compatible boards, providing a 2-axis joystick and multiple user-input controls.
- Includes X/Y analog joystick outputs, joystick push-button and additional control buttons for interactive applications.
- Ideal for robotics, game controllers, remote-control projects, menu navigation and Arduino-based human-interface applications.
SKU: joystick-shield

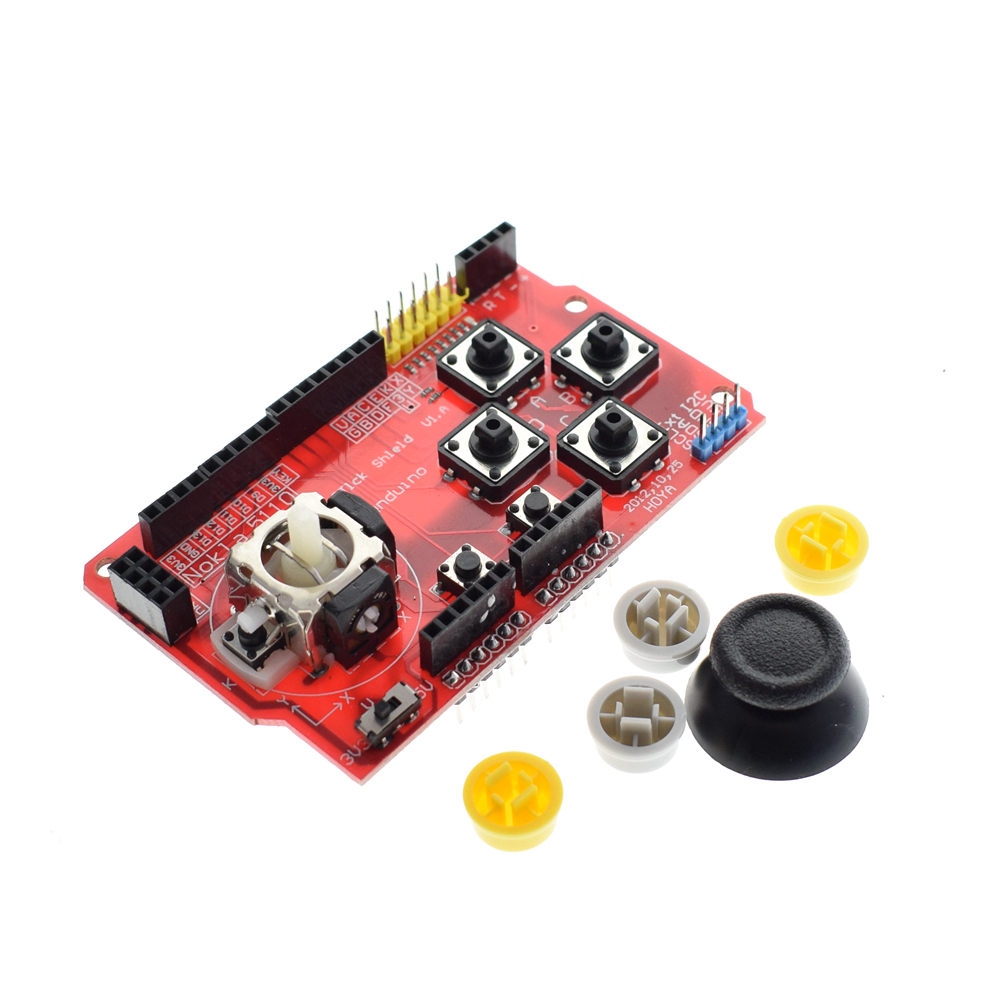

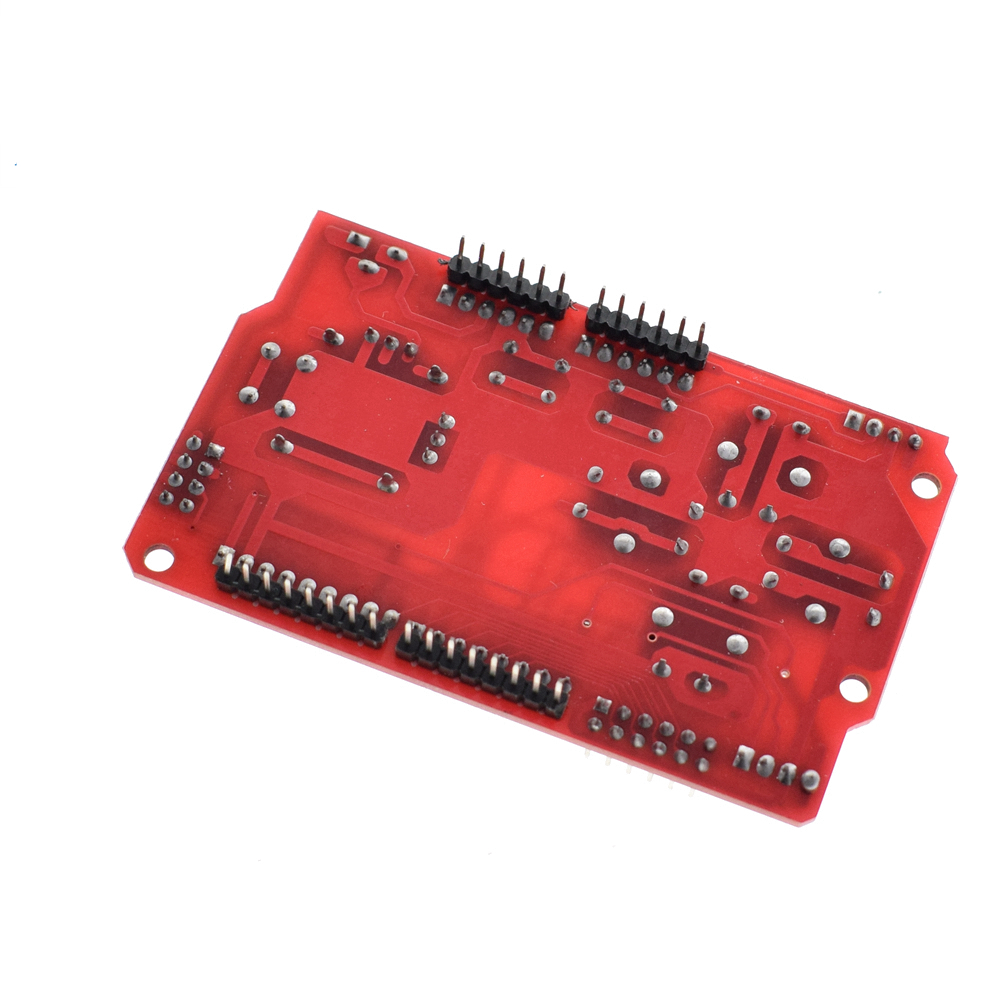

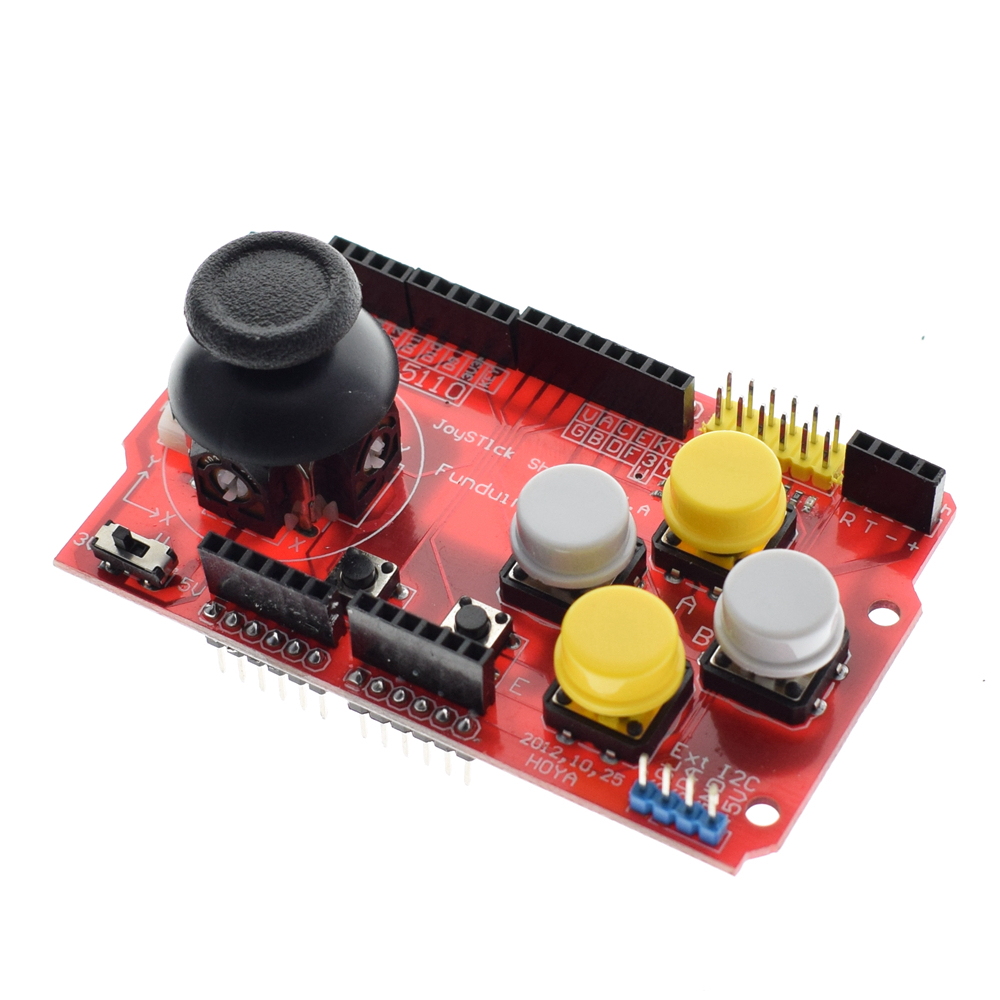

Joystick Shield for Arduino
The Joystick Shield is an Arduino expansion board designed to provide a convenient physical control interface for projects. It combines a two-axis analog joystick with a joystick push-button and additional control buttons, allowing users to build interactive projects without wiring each input separately.
The joystick provides independent analog signals for horizontal (X-axis) and vertical (Y-axis) movement, while pressing the joystick activates an integrated digital switch. Additional buttons can be assigned in software to functions such as selecting options, controlling movement, changing modes or triggering commands.
Designed for direct connection to compatible Arduino boards, the shield is particularly useful for robotics and game-control projects. It can be used to control motors, servos, LEDs, displays, robotic vehicles and other devices requiring multiple physical inputs.
The exact button arrangement and pin assignments can vary between Joystick Shield revisions, so the installed board's silkscreen or documentation should be used when programming a specific version.
| Product Type | Arduino Joystick Expansion Shield |
|---|---|
| Joystick Axes | 2-axis X and Y analog control |
| Joystick Push Button | Integrated digital switch |
| Additional Controls | Multiple digital push buttons; exact count depends on shield version |
| Joystick Output | Analog X-axis and Y-axis signals |
| Interface | Arduino shield header / direct board connection |
| Operating Voltage | Typically 5V DC |
| Compatibility | Arduino Uno and compatible Arduino boards |
| Control Type | Analog joystick + digital push buttons |
| Applications | Robotics, gaming, remote control, menu navigation and interactive Arduino projects |
| Expansion Type | Plug-on Arduino shield |
| Module Type | Human-interface / input expansion shield |
