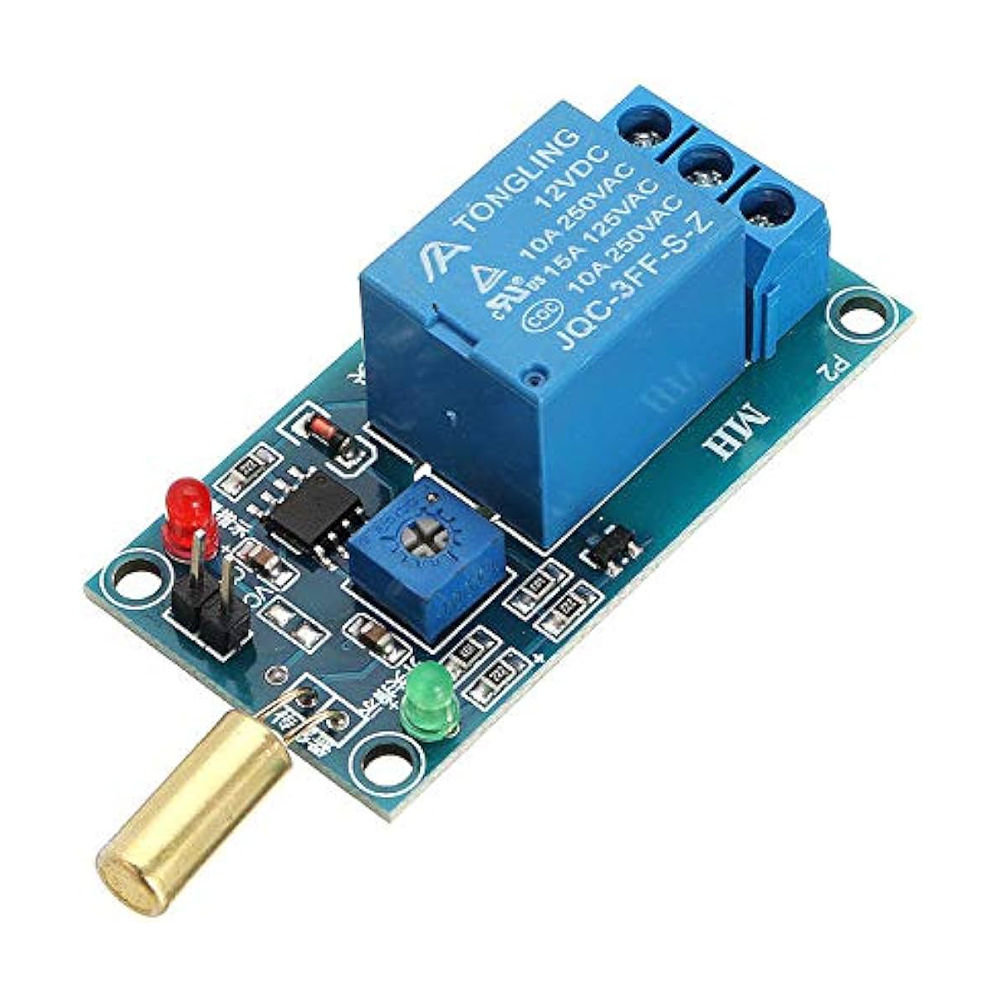

Tilt Sensor Relay Module

Various angle sensors, tilt sensors, output with relay, and direct connection to high current load, can be applied to various equipment dump protection, and appliance dumping protection.

Module features:

1. Default high-sensitivity SW-520D angle sensor can achieve 90-degree angle tilt detection

2. The comparator output directly drives the relay, which can be connected to 220V AC or other equipment

3. With potentiometer adjustment sensitivity

4. With 4pcs 3mm fixing bolt holes for easy installation

5. The output has a blue terminal block, convenient for wiring

Module instructions:

1. The initial state of the relay depends on the conduction and disconnection of the tilt sensor. When it is turned on, the relay is closed, the common terminal is connected to the normally open end, and when the tilt sensor is disconnected, the relay is disconnected, and the common terminal is connected to the normally open end.

2. The tilt sensor is generally installed in the normally open state in the initial state, so that the tilt sensor and the relay are not working, to prolong the service life

Electrical parameters:

Supply voltage: 5VDC

Current: greater than 100mA

Load: 250V 10A AC or 30V 10A DC
