PIR Mini Motion Sensor MH-SR602

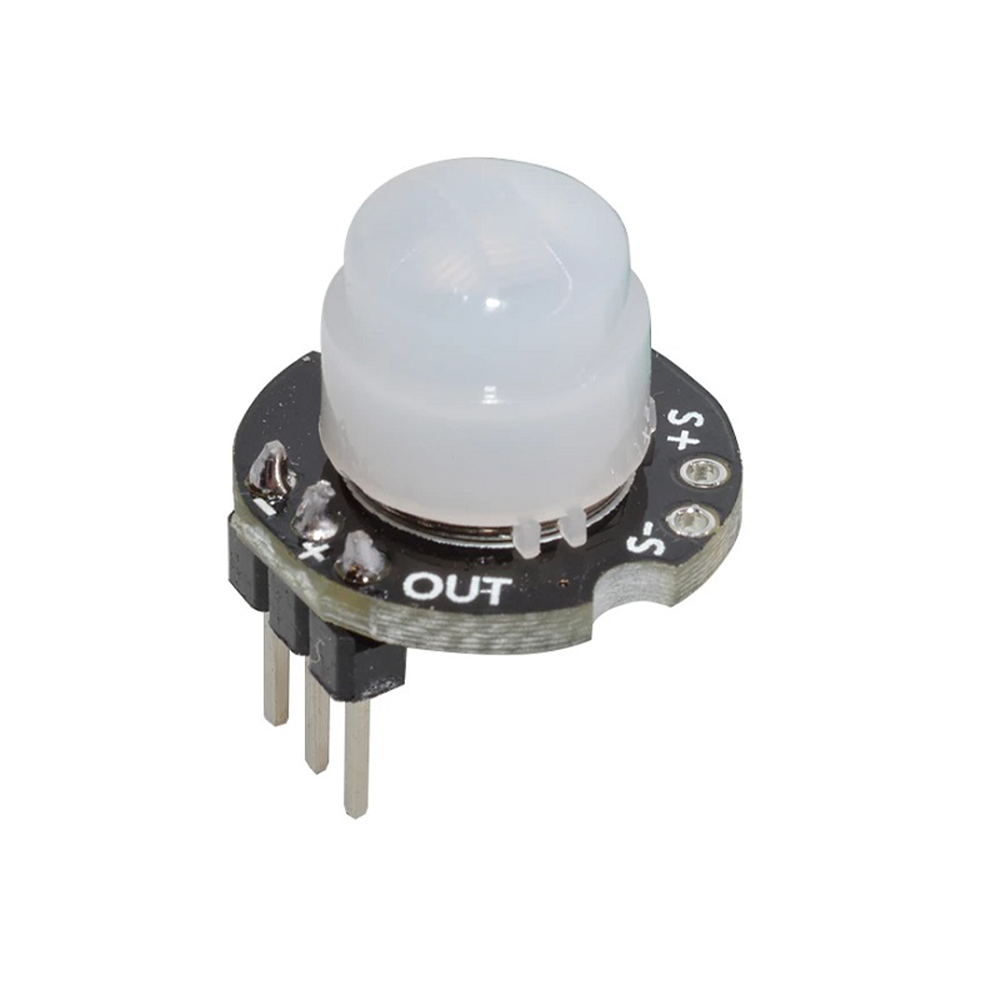

MH-SR602 MINI Motion Sensor Detector Module

MH-SR602 MINI Motion Sensor Detector Module is used as a Pyroelectric human body infrared sensor module. This module has a sensing distance of up to 5 meters. It Can be used for body sensor lights, alarms, and security. This product is known as Distance Measurement, Distance Sensor, Mini PIR Motion Sensor, MH-SR602, IR, IR Sensor, Mini PIR Motion Sensor, Motion Sensor, Passive Infrared Sensor, PIR, and PIR Motion Sensor.
Features and uses:
This module has high sensitivity, fast response, small static power consumption, small size, easy to install, and is installed.
The lens and the pin header have been soldered, and the power supply is provided without debugging. Can be used for body sensor lights, alarms, security,
Access control on-demand imaging, and automatic equipment for agriculture, forestry, and mining.
Note:
The high-level time of the output of this product is adjustable, 2.5 seconds to 1 hour, the output time set at the factory.
It is 2.5 seconds, and you can change one chip resistor if you need to change it. Please read the resistance value corresponding to the typical delay time.

Features/Specs:

• Model: SR602
• Sensing Distance: 3M-5M
• Delay: Adjustable
• Power supply: 3.3V ~ 15VDC
• Output: High level, H=3.3V, L=0V
• Quiescent current: 20uA
• High sensitivity
• Fast response
• Small static power consumption
• Small size
• Easy to install
• Color: Black
• Dimension in: mm
• Length: 15mm
• Width: 15mm
• Height: 20mm
• Weight: 25gm

Applications:

• Body induction lamps
• Body sensors toys
• Security Products
• Industrial automation and control
• Auto-sensing of electrical equipment
• Battery-powered automatic control
