OV7670 Camera Module

OV7670 Camera Module info

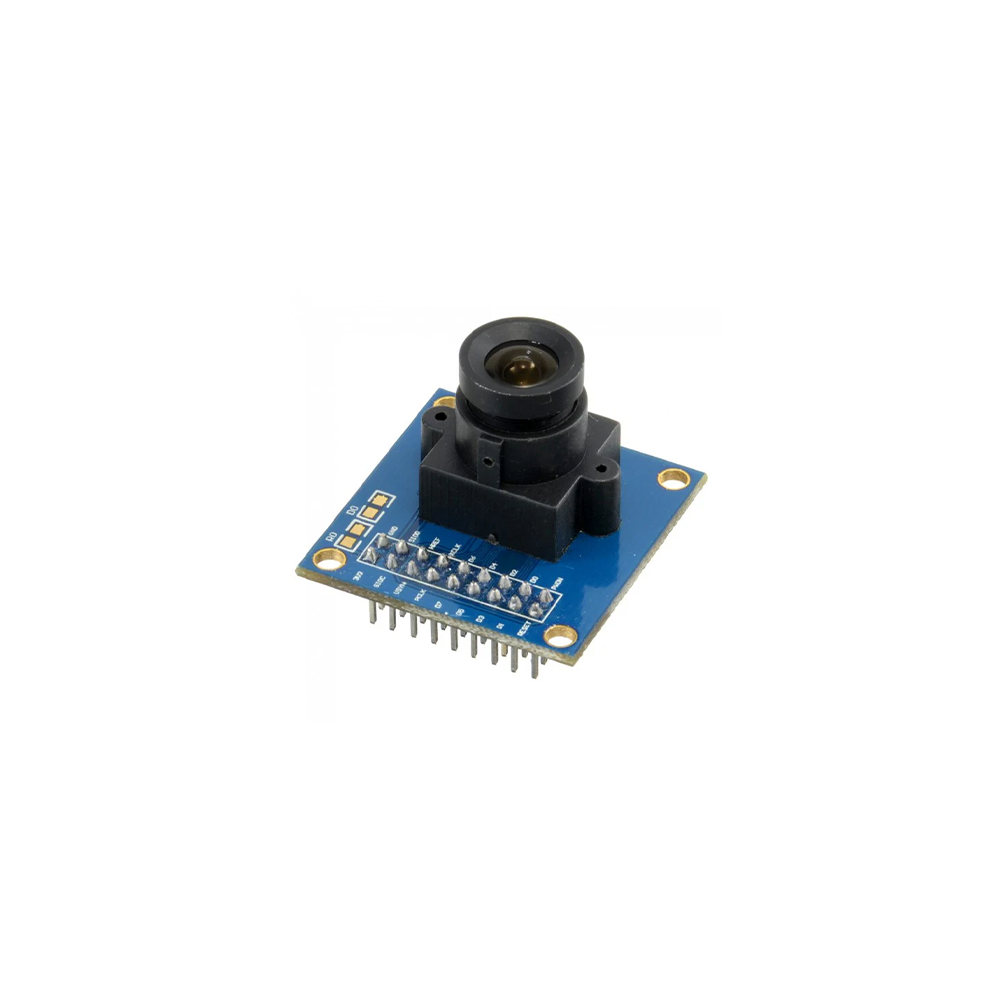

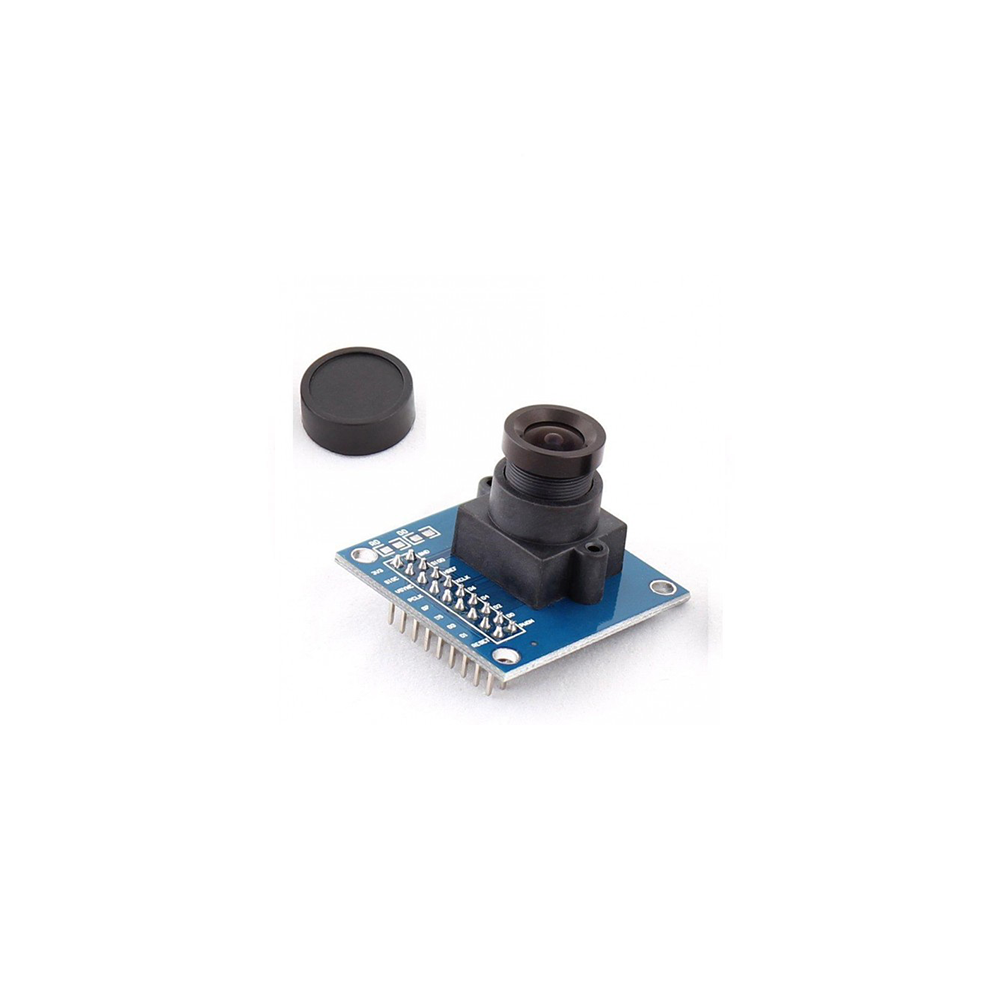

The OV7670 camera module is a low-cost 0.3 megapixel CMOS color camera module with a VGA output resolution of 640×480 at 30 fps and can be used with Arduino, STM32, Chipkit, ARM, DSP, FPGA, and so on.

Features:

• Optical size is 1/5 inch
• Resolution 640×480 VGA
• The regulator onboard does not need only a single 3.3V supply
• High quality F1.8 / 8mm lens
• Raw RGB, RGB (GRB 04:02:02, RGB565 / 555), YUV (04:02:02), and YCbCr (04:02:02) formats
• High sensitivity for low light operation
• Low operating voltage for embedded applications
• Standard SCCB interface compatible with I2C interface
• Video support: VGA, QVGA, QQVGA, CIF, QCIF, QQCIF
• Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic
• Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
• Image quality controls, including color saturation, color, gamma, sharpness (edge enhancement)

OV7670 image sensor datasheet

Instructables for OV7670 camera module tutorial with Arduino
