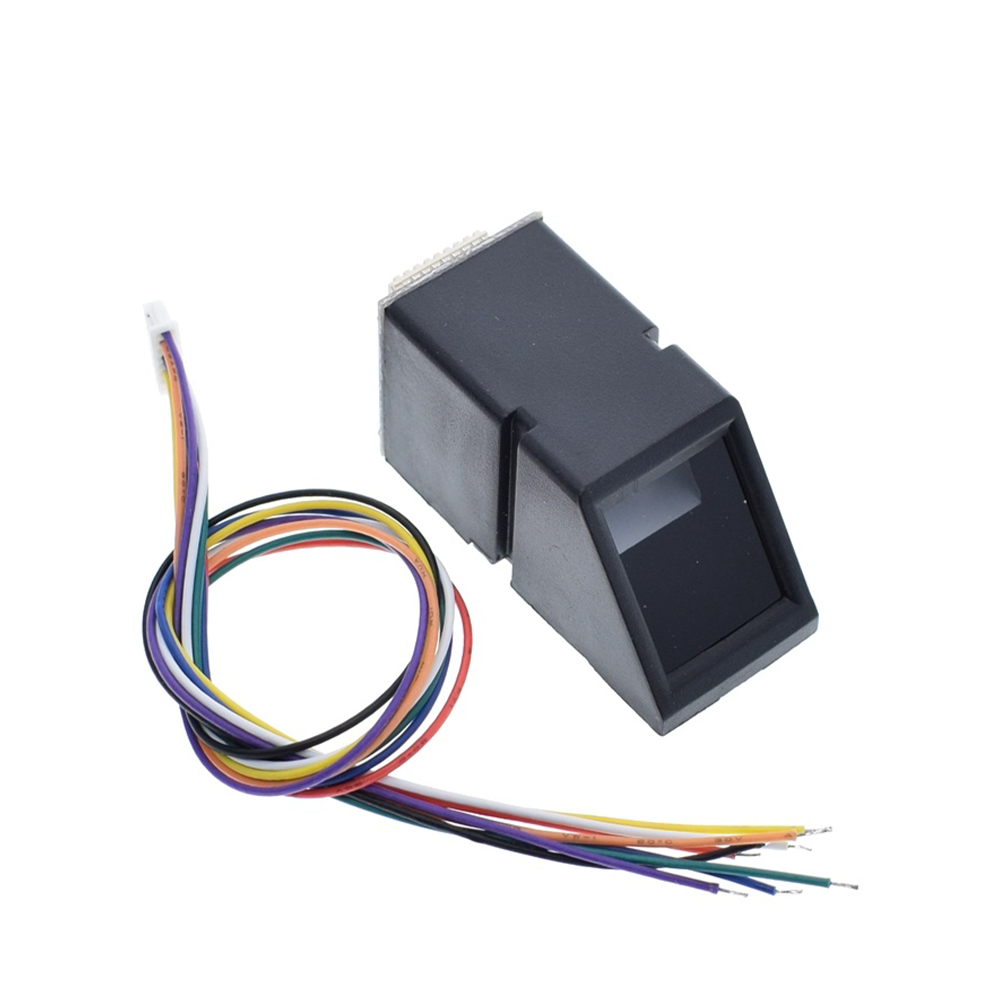

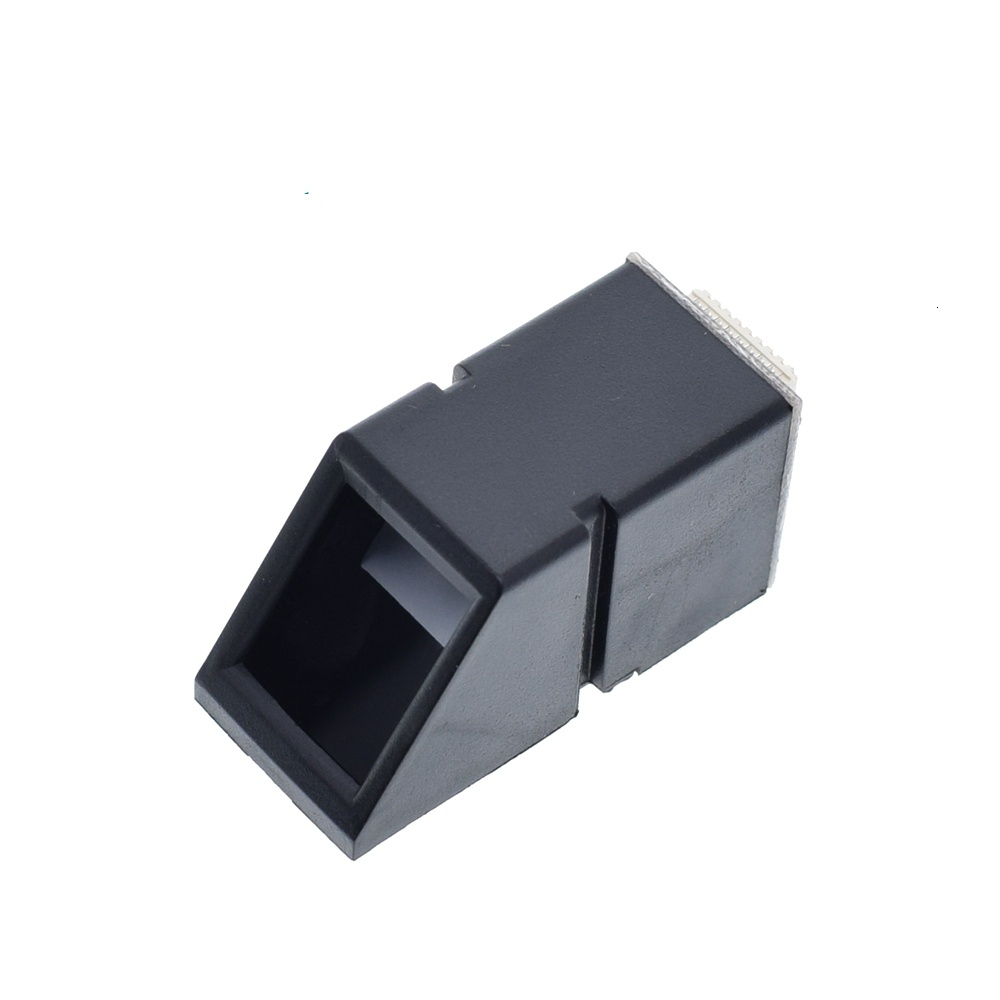

AS608 Optical Fingerprint Sensor Module
$ 15.00
AS608 is a fingerprint scanner and reader module but does more than that like fingerprint enrollment, image processing, print matching, and many more.
Product details
AS608 Optical Fingerprint Sensor Features
The AS608 optical fingerprint sensor can be used to scan fingerprints and it can send the processed data to a microcontroller via serial communication as well. All registered fingerprints are stored in this module. The AS608 is capable of storing up to 127 individual fingerprints
The most important features are:
- Supply voltage: 3.3V
- Maximum current supply: 60mA
- Resolution: 500dpi
- Max fingerprint imaging time: 1s

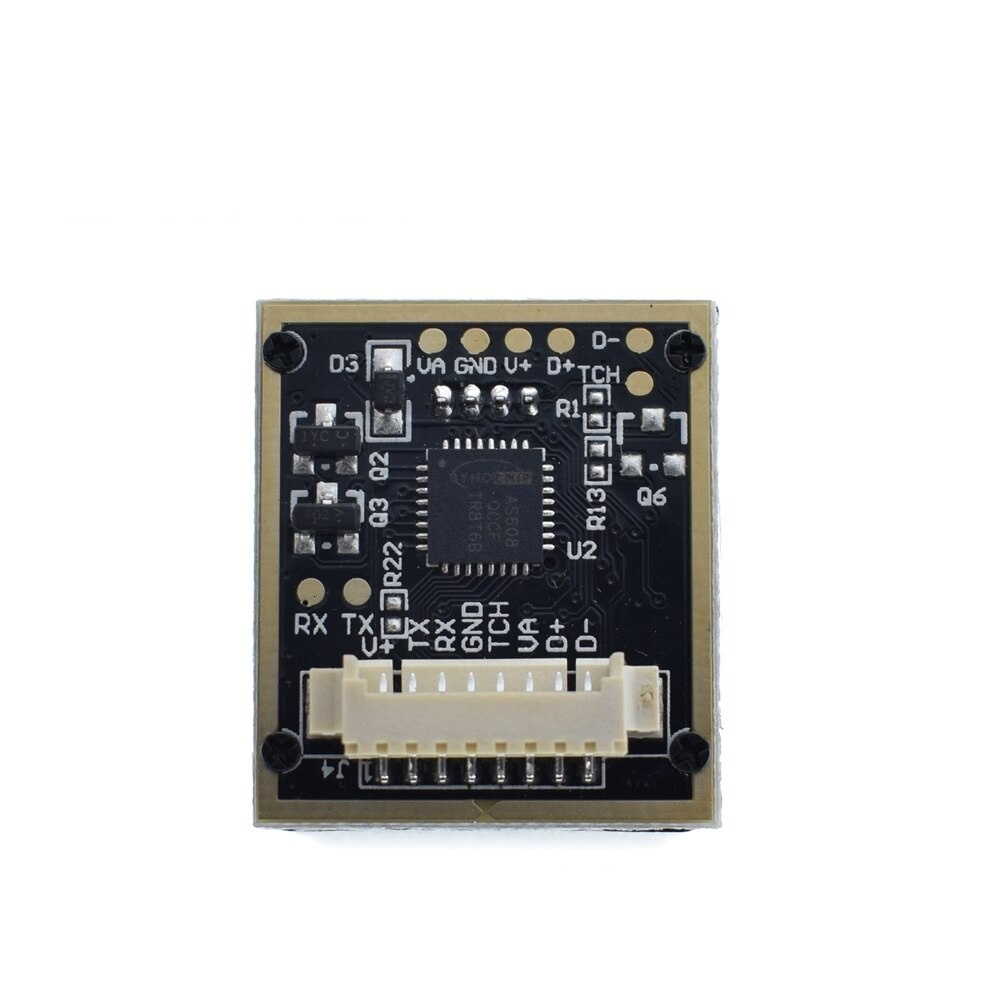

AS608 Optical Fingerprint Sensor Pinout
This Module has 4 useful pins:
- V+: Module power supply – 3.3V
- GND: Ground
- TX: Serial Transmitter
- RX: Serial Receiver
